SWING, Small and Wide angle X-ray scattering
Pour l'étude d'échantillons à structure complexe : macromolécules, nanomatériaux, tissus...





En fournissant des informations sur la structure de la matière à des échelles variant entre le nanomètre et le micromètre, la ligne de lumière SWING permet de répondre à de nombreuses questions liées à la matière molle, condensée, à la conformation des macro-molécules en solution (BioSAXS) et aux sciences des matériaux.

La configuration de la ligne permet la mesure simultanée des rayons X aux petits angles (SAXS) et aux grands angles (WAXS) dans une plage d'énergie allant 5 à 16 keV. Des expériences de diffusion anormale peuvent également être effectuées.

Une très grande variété de types d'échantillons peut être étudiée, par exemple, des solutions, des gels, des solides amorphes, des solides cristallisés, tout cela grâce à la diversité des environnements d'échantillons proposés.



Flyers



L'équipe

PEREZ
PEREZ Javier
Responsable Ligne De Lumière
BIZIEN
BIZIEN Thomas
Scientifique de Ligne De Lumière
THUREAU
THUREAU Aurelien
Scientifique de Ligne De Lumière
GIBERT
GIBERT Arnaud
Meneau Florian
Brazilian Synchrotron Light Laboratory (LNLS), Campinas
Roblin Pierre
Laboratory of Chemical Engineering , Toulouse
Galindo-Gonzales Cecilia
Koutsioupas Alexandros
Evrard Guillaume

-

Données techniques

Source

In-vacuum U20 undulator.
Source Size (sigma, μm): 388 (H) x 8.1 (V)
Source Divergence (sigma, μrad): 14.5 (H) x 4.6 (V)

Gamme d'énergie

Between ~5 and 16 keV

Résolution en énergie

~2 eV

Optiques

Diaphragm at 11.7 m (1x0.5 mm2)

Fixed exit DCM Si111at 20 m

Fixed incidence focusing KB at 22.5 m (HFM removable for micro-focus)

Linear H-CRL (f=81 cm): 31 m

Sample position: around 32 m

Detector / Sample Distance: 0.5 – 6.5 m

Taille du faisceau

200 x 20 to 500 x 200 μm2 (KB)

20 x 20 µm2 (micro-focus)

Flux sur l'échantillon

(with 500 mA ring)

1.1013ph/s @7keV,

5.1012ph/s @12keV,

1.1012 ph/s @16keV

Beamstops



Two active beam stops are available, including:

•     a Si diode (Hamamatsu); external size 6 x 3 mm², for the µ-beam setup.

•     a Diamond diode, external size 2.2 x 1.2 mm², for the standard SAXS setup.

Détecteurs



SAXS:

•         EigerX4M in vacuum (Dectris web site)

•         Detection area: 162.5 x 155.2 mm2

•         pixel size : 75 x 75 µm2

•         frame rate : up to 750 Hz

The Eiger is positioned on a 3 axis translation stage, allowing large vertical and horizontal repositioning with respect to the beam. The third translation is to change the Sample-Detector distance.





WAXS:

•         Merlin (Quantum Detector website)

•         Detection area: 28x28 mm2

•         pixel size: 55 x 55 µm2

•         frame rate: 1000 Hz

The detector is positioned in air on a double axis goniometer (Mecaconcept Company), with a further three translation stages for detector alignment with respect to the sample. One more translation along the X-ray beam direction enables to set the sample to detector distance. Rotation of the detector stage around the beam (χ axis) gives the possibility to explore anisotropies at fixed q value.

Q range

All values below suppose that the direct beam is close to a detector corner.
q Max values are on the opposed corner.
q Min values are on the vertical direction only.



Motorized Stages for Sample Environments



TX1/TZ1, the large main motorized stage, can be used to bear heavy equipments, as it is or in combination with load bearing tables. A more accurate motorized table, TX4/TZ4, can be used on top of TX1/TZ1 for lighter equipment.



Dedicated sample environments have been developed to provide scientific communities with optimized experimental conditions.  For soft-condensed matter and material science, a number of devices are available. For structural biology, a completely automated BioSAXS system is routinely used including either online purification or direct injection, connected to a quartz capillary cell placed within a vacuum chamber. In addition, don’t hesitate to ask for help in the optimization of your own sample environment.

All sample environments, except the rheometer, are preceded with an On-Axis-Visualization (OAV), for direct visualization of the sample.

Here are presented most of the devices proposed on the beamline.

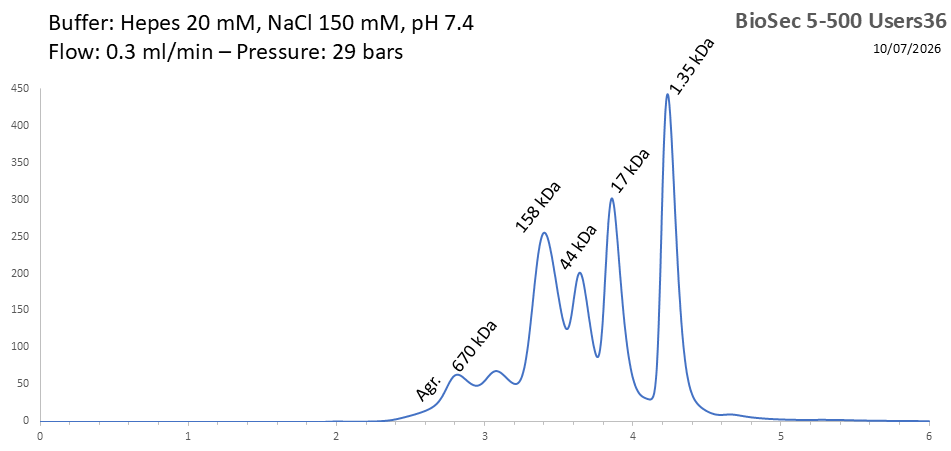

BioSaxs: HPLC-SEC

•   Sample volume: 10 to 100µL

•   Sample Concentration: 1 to 30mg/mL

•   Two parallel purification circuits (two columns with different buffers can be inserted)

•   Connected to the Biosaxs Vacuum Cell

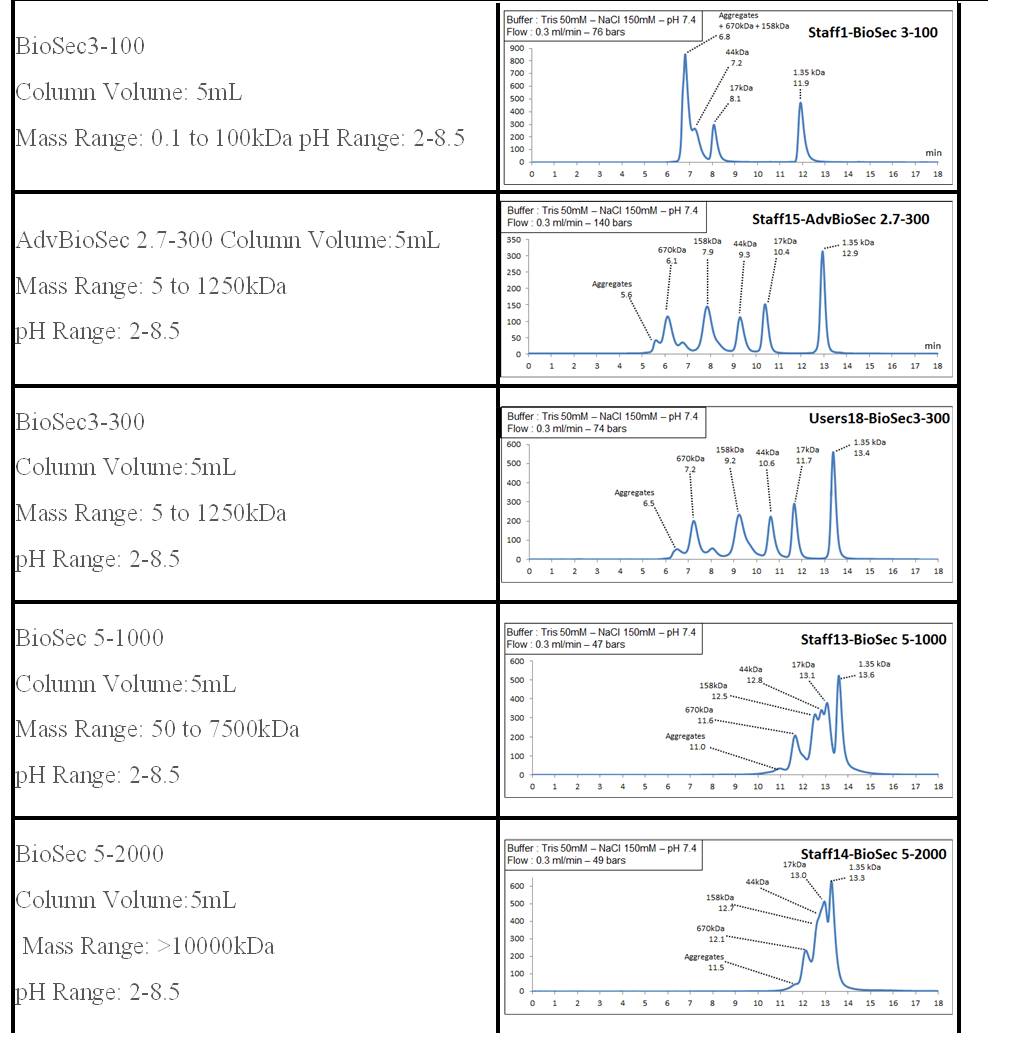

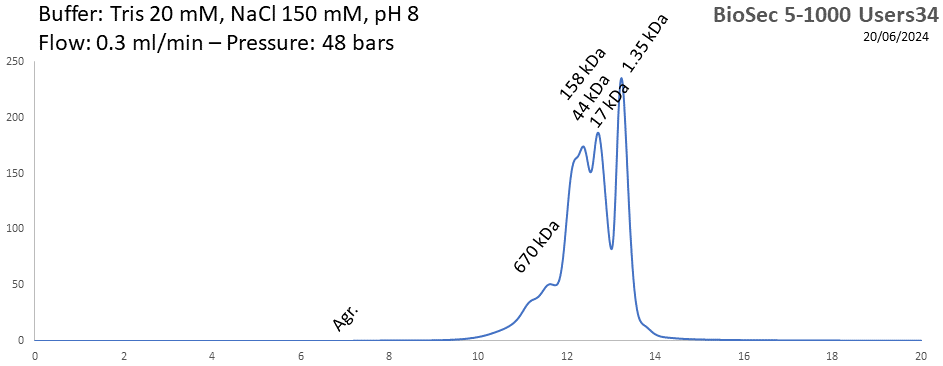

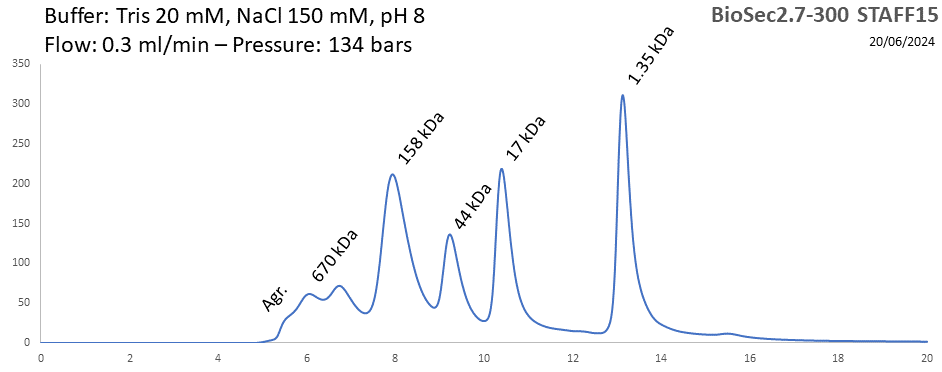

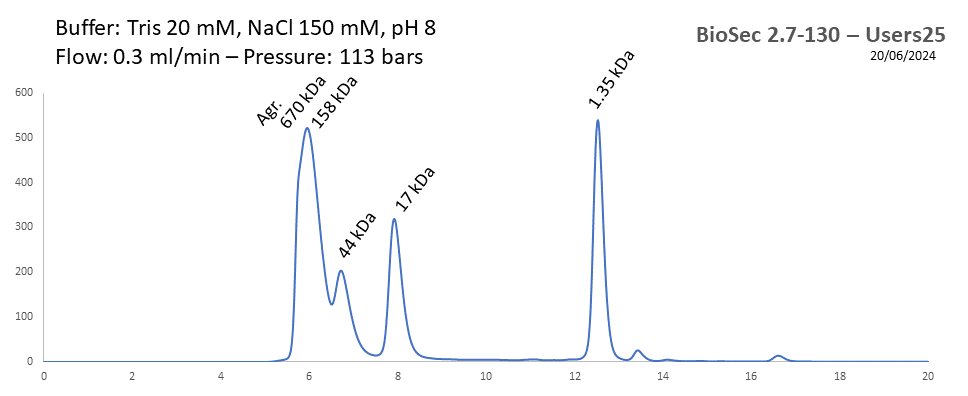

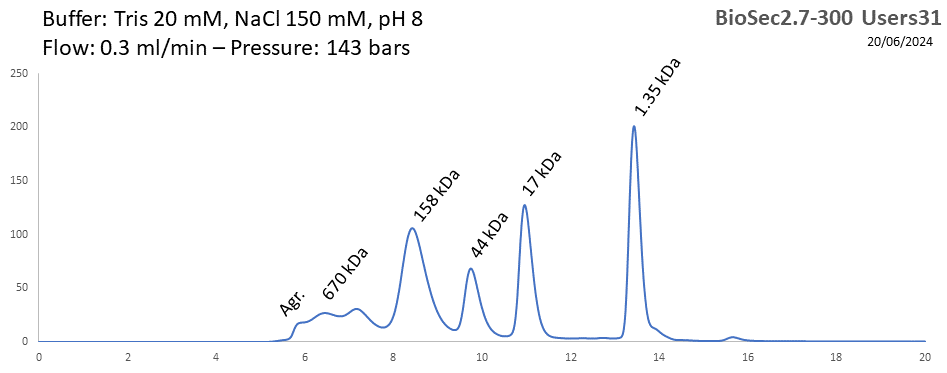

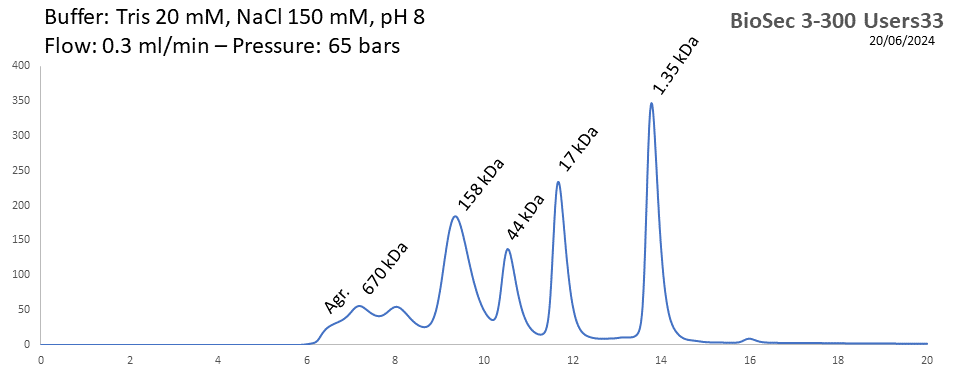

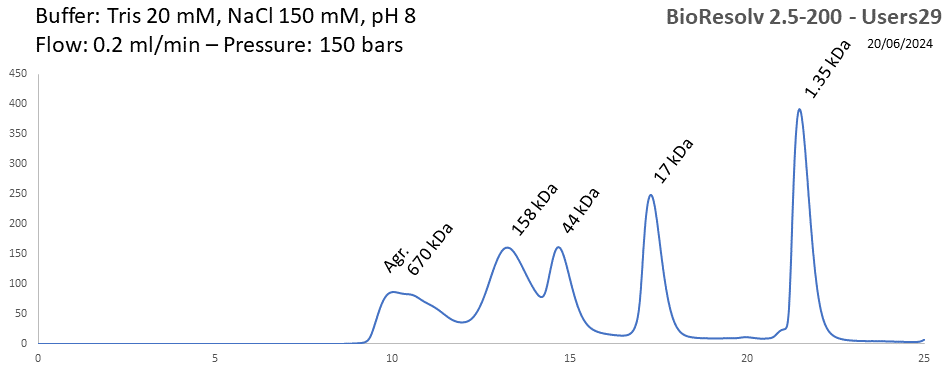

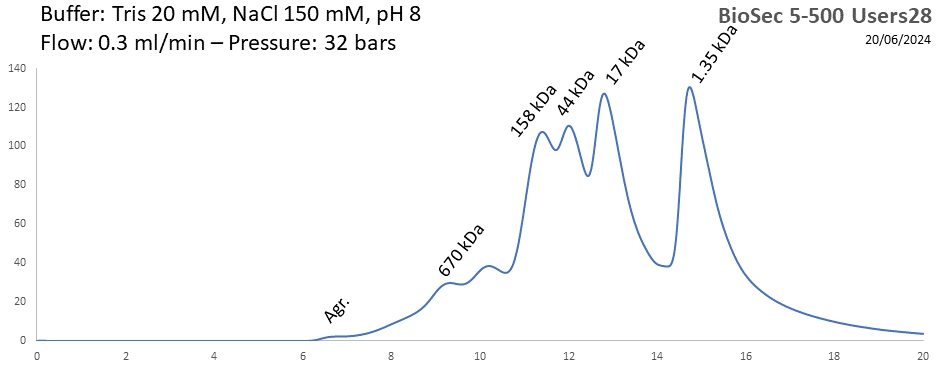

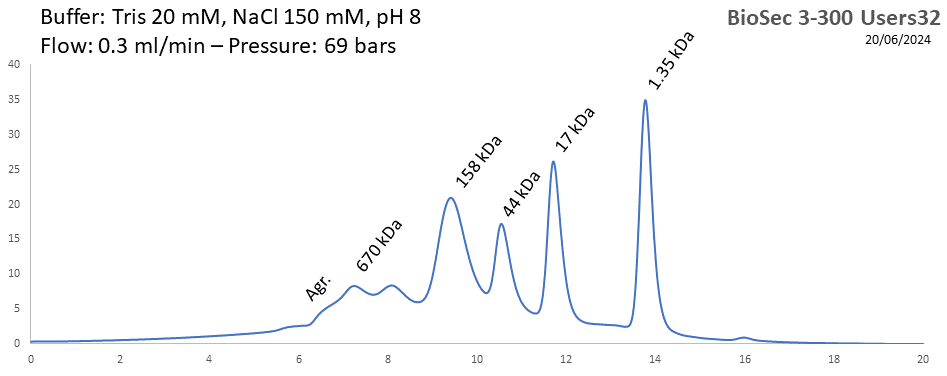

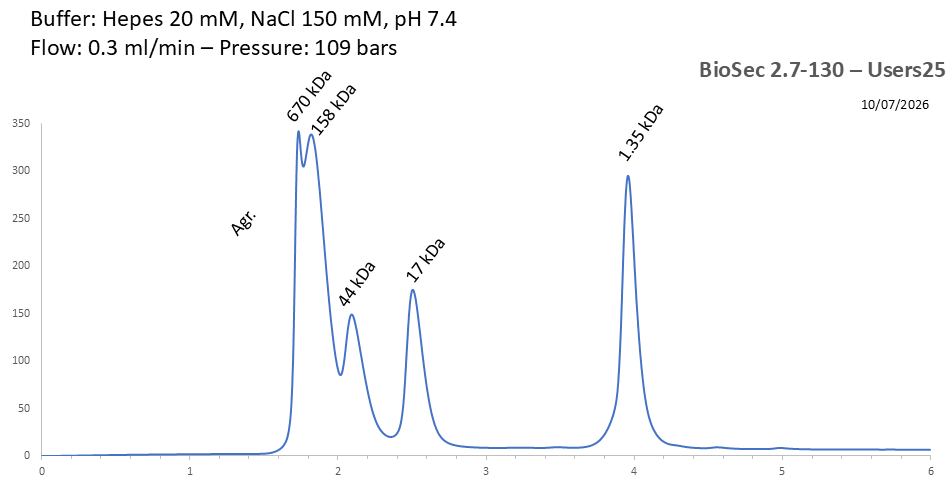

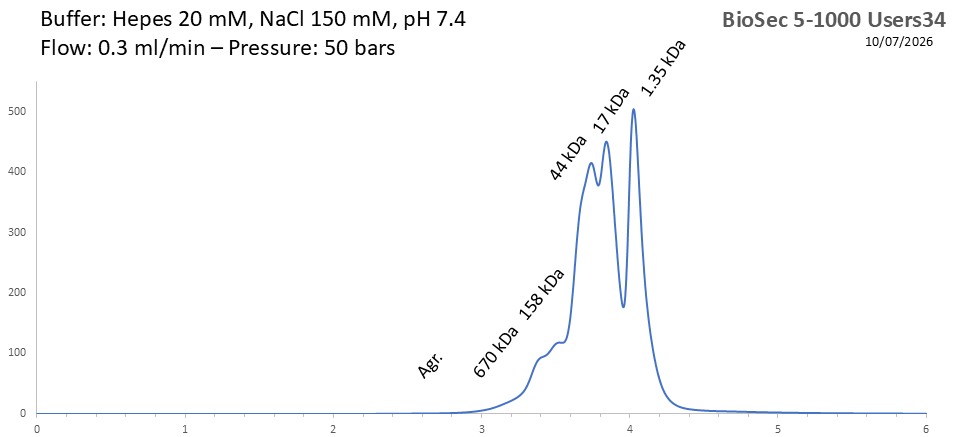

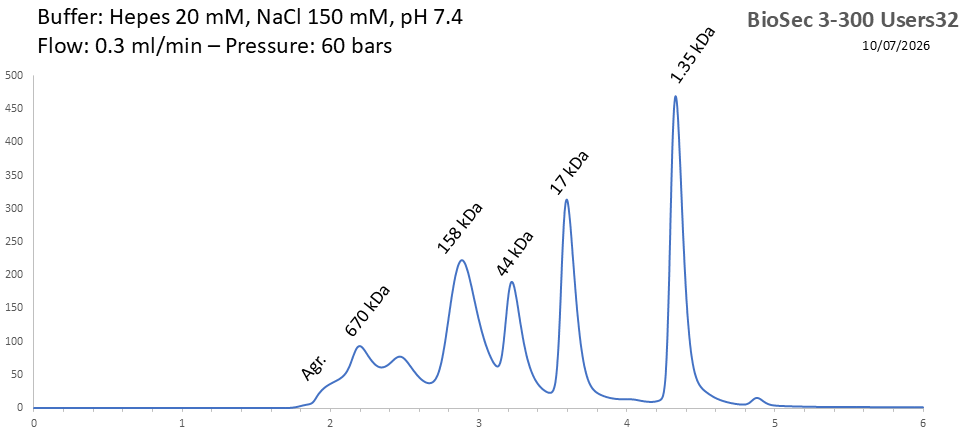

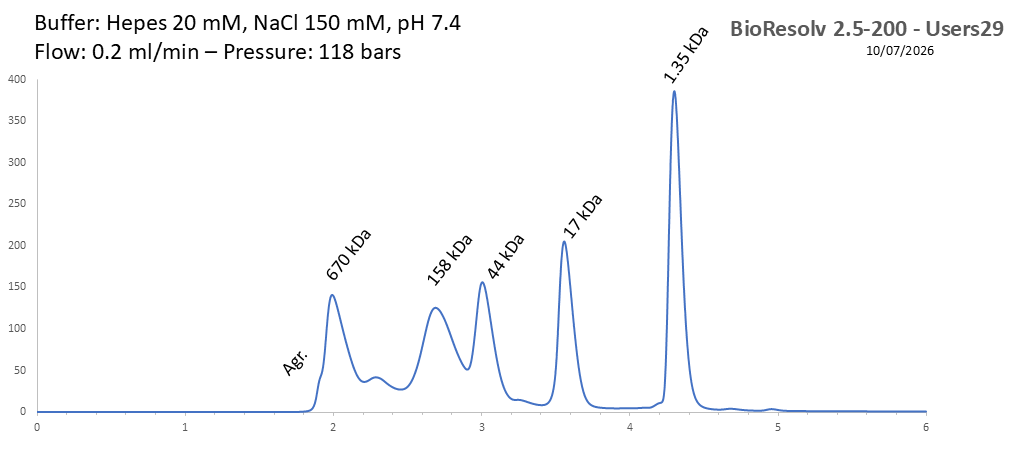

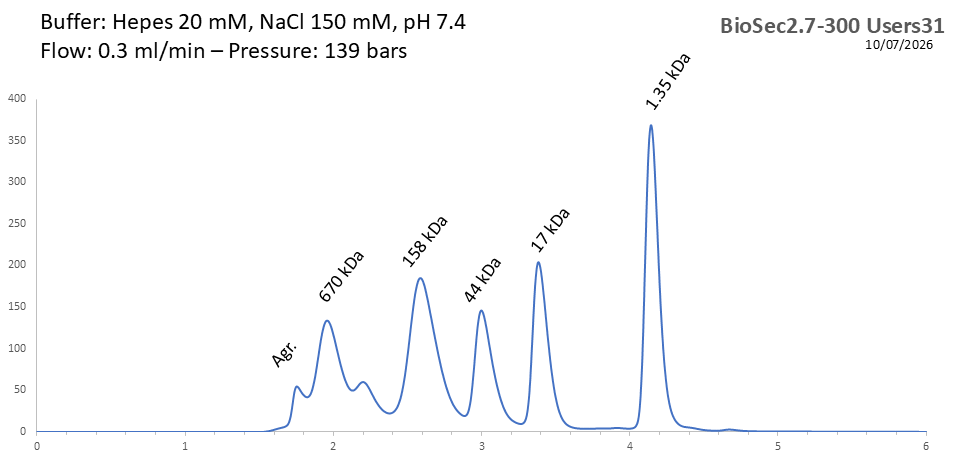

•   Biosec-3 columns available on the beamline

•   Combination of the SEC-SAXS system with MALS and RI at user request

•   Automated workflows for sequential multiple injections and data analysis

•   IspyB database

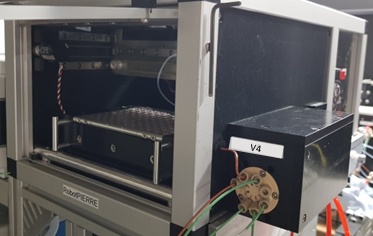

BioSaxs: AutoSampler

•   Sample volume: 10 to 50µL

•   Sample Concentration: 0.2 to 10mg/mL

•   Duty cycle: 3.5 min (pipetting, injection, measurement, cleaning and drying)

•   Vials capacity: 104

•   Thermalized vials holder (5-10 to 60 °C)

•   Injection rates of : 10 to 100 µl.min-1

•   Viscosity compatible up to 30 % glycerol in water / 250 g.l-1 BSA

•   Connected to the Biosaxs Vacuum Cell

•    Immediate switch between direct injection and SEC-SAXS modes



BioSaxs: Vacuum cell



•   In vacuum housing

•   Horizontal Ø 1,5 mm open quartz capillary

•   horizontal scanning window: 5 mm

•   Static Thermalization: 5-70 °C

•   In-situ UV-Vis absorption

•   In-situ UV-Vis fluorescence

•   Internal lamp : White, blue, green and red





High Pressure for Liquids

  • High Pressure bench from NovaSwiss
  • Sample volume: 70µL
  • Sample Concentration (if protein): > 5 mg/mL
  • Working energy : 15keV
  • Pressure from 1 to 6000bars
  • Automatic Pressure’s ramp
Ex: from 1 to 3000 bars and back: 35min in 20 steps

Static Capillaries Holder

•   Horizontal or Vertical orientation

•   Number of slots: 20 capillaries (advised: Ø 1,5 mm)

•   Scanning window behind each capillary: 5x1.2 mm2

•   Distance between capillaries: 5 mm

•   Thermalization: 5-60 °C



Flow-through Capillaries Holder

Circulation Capillaries Holder

•   Horizontal Ø 1,5 mm open quartz capillaries: 3

•   horizontal scanning window: 20 mm

•   distance between capillaries: 15 mm

•   Thermalization: 5-60 °C

Circulation through the capillaries can be done using various setups :

•   Peristaltic pump

•   Chemsaxs Injection Robot

•   2-Syringe motorized driver

•   Manual injection

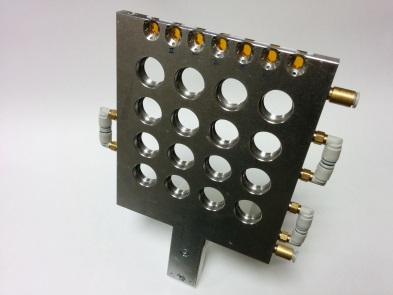

Gels / Solids (polymer slice, pellet) Holder

•   Two rows: 2 x 20 wells

•   Distance between rows: 45 mm (V)

•   Distance between wells : 15 mm (H)

•   Wells diameter: 2 and 4 mm

•   Teflon spacer thickness: 1.5 mm

•   Closed on each side by a Kapton foil



Warning : this gel holder won’t work with low viscosity gels (leaks)



Liquids / Gels holder

•   16 sockets for low viscosity gels and liquids

•   Stainless Steel spacer path: 1.5 mm ( 1.7 mL) or 1 mm (1.1 mL)

•   Closed by 2 mica windows



Tip: Sealing was tested with ethanol. Sealing was efficient for more than a week.



Mixing and pipetting cell

Mixing and pipetting cell

•   5 / 10 ml mixing cell with a steerer

•   Sample aspiration through a Ø1Ø 1,5 mm quartz capillary

•   Possible injection into the mixing cell through a separated hole, synchronized with detection

•   Thermalization 5- 60 °C

Tip: The sample is drawn in the capillary at the required height. After X-ray exposition, it is reinjected into the mixing cell.



Linkam THMS 600

Linkam
  • Temperature range: -196 to 600 °C
  • Up to 150°C/min heating and 100°C/min Cooling
  • Capillaries have to be Ø 1,4 mm maximum
  • They need to be cut = > see section: specific setup/linkam
  • They need to be sealed => see section: specific setup/linkam
  • Proprietary Linkam software on a deported PC







Traction Cell

Traction Cell

•   Max. Working load: 111 N

•   Max. working length : 6 mm

•   Resolution 0.05 N

•   Step : 0,5 µm



Rheometer

Rheometer

Rheometer Anton Paar MCR 501

                   •   Polycarbonate Couette cells

                   •   Internal radius: 10 mm,

                   •   Height : 17 mm

                   •   gaps (Re – Ri): 0.5 / 0.2 mm

                   •   Sample Volume: about 1.2 ml

                   •  Tangential and radial positions for x-ray beam



Stop-Flow-SAXS-MALLS

  • Biologic SFM400
  • Aqueous solutions only
    • Tip: For organic solvents, please contact us
  • 4 syringes with 2 / 10 ml reservoirs
  • Biologic X-ray cell based on a 1 mm diameter Quartz capillary
  • Minimum dead time: 5 ms
  • Proprietary Biologic software on a deported PC
  • Synchronization with SAXS acquisition via TTL signals
  • Geometrically increasing dead-times between SAXS acquisitions
      •   Tip: Please contact us for double connection to MALLS and SAXS









Micro-fluidic

•   Fluigent MFCS-EZ system

•   3 pumps available  see section: specific setup/microfluidics

•   3 flowmeters  see section: specific setup/microfluidics

•   Maximum injection pressure for each pump: 345 mBar



Monitoring of the commercial pumps and flowmeters is decoupled from the beamline workflow and is thus controlled from a separate laptop.



ChemSaxs Liquid AutoSampler

  • Sample volume: 10 to 50µL
  • Duty cycle: 5 min (pipetting, injection, measurement, cleaning and drying)
  • Vials capacity: 34
  • Thermalized vials holder (5-10 to 60 °C)
  • Injection rates of : 10 to 100 µl.min-1
  • Viscosity compatible up to 30 % glycerol in water / 250 g.l-1 BSA
  • Connected the an in-air flow-through Quartz capillary cell



StopFlow-MALS-SAXS

•   Biologic SFM400

•   BioSAXS Vacuum Cell

•   MALS: Wyatt 18 angles Heleos-II

•   Total volume per injection : 1200 µL

•   Thermalized tubings

•   Automated cleaning (background buffer, cleaning buffer, detergent, water)

•   Synchronization between SF, SAXS and MALS acquisition via TTL signals

•   Mixed solution continuously refreshed in the SAXS cell

•   Dedicated GUI for cleaning and acquisition launching

Example of what can be obtained with this facility (2.29 MB)

Please contact us for this sample environnement



User’s environment

Your own setup is welcome on the beamline. Please contact us before submitting a project, as we need to be sure that your setup can be installed on the beamline.

It is possible to insert the control of your setup in the data collection workflow

  • Remote control of your monitoring laptop
  • Send to or receive a trig from your setup
    • This allow synchronization with the data collection workflow



Under one of the two specific conditions:

  • A tango device (software) has already been developed for that apparatus. Unlikely.
  • That apparatus includes a connection for external triggering (in/out, BNC preferred), that we can connect to one of our signal generating or reading electronic cards . Likely . (mainly 5V; 0 to 24 v possible; with BNC type cables).

Specific Setups

Linkam THMS 600

This apparatus requires your capillaries to be 1.4 mm in diameter maximum. As the Linkam “oven” part is really small and its environment crowded, those capillaries need to be cut-off and sealed-off. For small diameter capillaries, we recommend to center them on the incoming beam  aperture by inserting a (homemade) shim.



To fit in the Linkam oven, it is mandatory to cut your capillaries to a maximum length of 35 mm. In order to obtain a clean cut, quartz capillaries are preferred to borosilicate.

You can either cut your capillaries in your lab or at SWING. We can show you how to do it.

After the sample is loaded in the cut capillary, you have to seal it in order to avoid evaporation of solvent or spillage in the Linkam stage. Two techniques can be used:

Flame sealing if you have borosilicate capillaries. If you have a glassware lab you still can seal quartz capillaries with your glassmaker.

Glue sealing for Quartz capillaries

In this case, we cannot firmly recommend any glue as it is sample and temperature dependent… but epoxy glues are of good use.

If glue sealing does not suit your requirement, you can give it a try with modeling clay (if you don’t heat over 120 °C)

Microfluidics

SWING is equipped with:

  • A MFCS-EZ system (Fluigent) with 3 pumps installed. The maximum pressure each pump can give is 345 mBar.
  • A flowrate platform, consisting of 3 flow unit models and the flowboard.

Please find the flow unit characteristics:


This setup can use either three 5 mL Eppendorf and or one 15 and/or three 50mL Falcon and or one for classic chemistry glass bottles (GL45 screw cap).

This system is controlled via Maesflow, the proprietary software. It allows:

  • Direct control on the pump pressure = no active control on the flow rate. But flowrate value readable.
  • Direct control on the flow rate = active control of the flow, keeping each flow stable vs the other flow.

There is no feedback from the software or microfluidics controller to the beamline control system.  So you will have to control both systems from the control room.

As microfluidic chips are designed for a specific experiment, SWING staff does not provide chips. Nevertheless, if you need to make your chips at SOLEIL, we will be pleased to welcome you to the Microfluidics Lab. Furthermore, we will be happy to help designing your chips: choice of materials, size of channels for saxs measurement…

Please contact us in advance as the sample environment may be crowded and thus your chips, tubbing and other device may not fit easily in the beam path.

Microfocus and On-the-fly Raster Scan

Microfocus and On-the-fly Raster Scan can either be used as a combination or independently.

Microfocus

Installation of the microfocus setup requires more time than for a usual sample environment. Thus it is mainly installed for a whole week.

SWING Microfocused beam is obtained using a linear H-CRL for horizontal focusing and the standard VFM (vertical focusing mirror) for vertical focusing. The resulting beam size is of 20 x 20 µm² on the sample.

With this setup, the sample environment is much more crowded than for a “classic SAXS” experiment. The TX4/TZ4 table can be used to move samples holders. If you want to use your own holder please contact us to know if it will fit.

As the beam is strongly focused on the sample, the sample to detector distance is limited from 0.670 to 2.5 m and a larger beamstop than the usual one is positioned. Moreover, the number of selectable H-CRLs limits the working energy to any of four fixed values: 8, 10, 12, and 15 keV. The resulting q-ranges are shown in the following table.

Raster scan

Continuous 2D imaging is called “Flyscan” at SOLEIL, by opposition to step-by-step scan. It consists of a 2D cartography whose first dimension is associated with a continuously moving motor and the second dimension is a standard step movement.

Flyscan is mainly used with the combination of the Microfocused beam. Yet it is still possible to use Flyscan with a more standard beam.

In Flyscan mode, the data from the sensors (detectors, diodes, thermocouple…) and motor positions are all collected synchronously and merged in the same HDF5 file. This allows reconstructing maps from each of the scalar sensors or from an operation made on the images.

For a map of 200 by 200 pixels, with a typical exposure time of 200 ms (plus dead time of 5ms), motor steps of 25 µm, the scan will last about 1 hour and a half, about 6 times faster than the equivalent step-mode scan. (voir presentation sur le overhead)

As any for any session at SWING a specific data collection Passerelle GUI and a specific workflow visualization COOX GUI are available.

At the moment, the generation of maps using Foxtrot is under development, it will be available on the beamline in September 2020.

Before submitting your project

Don’t hesitate to contact one of the beamline scientists, for any information about:

  • The Beamline
  • The available sample environments describe above
  • Bringing your own sample environment
  • Your project feasibility
  • How many shift your project requires

Aurelien Thureau (aurelien.thureau@synchrotron-soleil.fr) and Javier Pérez (javier.perez@synchrotron-soleil.fr) deal with Biosaxs

Thomas Bizien (thomas.bizien@synchroton-soleil.fr) and Javier Pérez (javier.perez@synchrotron-soleil.fr) deal with “everything else”



Useful links:
  • Application for beamtime:

https://www.synchrotron-soleil.fr/en/users/application-beamtime

  • Project submission on the sunset:

https://www.synchrotron-soleil.fr/en/users/application-beamtime/how-prepare-proposal

  • Participant declarations and sample declarations:

https://www.synchrotron-soleil.fr/en/users/preparing-your-experiment-administrative

https://www.synchrotron-soleil.fr/en/users/preparing-your-experiment-scientific/safety-requirements#SamplesSubstances



Tip: Be careful, don’t submit before your sample and participants lists are complete. Bear in mind that after selecting samples and participants on the sunset interface, you can “save only” rather than “save and submit”. Thus if your selection is incomplete, you can still edit your previous list and submit it in time when you have your final list ready, as it is requested here: https://www.synchrotron-soleil.fr/en/users/preparing-your-experiment-scientific/safety-requirements#SamplesSubstances

Support labs:

https://www.synchrotron-soleil.fr/en/know-how/supports

Tip: Biolab1 and Chemistry 1 are close to the SWING beamline.

For any complementary information,

 Please contact the User Office:

+33 1 69 35 96 51

Working hours are (from Monday to Friday):

8:30 - 17:30

Office A1.0.06, Main Building

useroffice@synchrotron-soleil.fr

Coming at Swing

Your session generally includes some time needed for set up installation. It is strongly recommended to discuss with your local contact before coming to the beamline to save time during installation. In particular, don’t hesitate to ask for help in the optimization of your own sample environment.

Please bring an external drive to back up your data from SOLEIL mainframe (at least 1 TB). It has to be compatible with Windows format (FAT32, exFAT or NTFS). Your local contact will run a macro for live synchronization between data on SOLEIL mainframe and data on your hard drive. However, even if we do not advise to do so, you can still download your data files a posteriori, via the sunset [Experiment Data][Soleil Data Retreaval]

Wi-Fi is available on SOLEIL site using your sunset login and password or using Eduroam network.

BioSaxs

What you have to bring

We use Agilent standard vials and inserts for the HPLC device and the Auto Sampler. We lend you the vials and the caps but you have to buy your own inserts (Agilent reference: 5181-1270). In case you forgot, we can provide you with used inserts that you can wash and dry.

The minimum quantity of buffer is 40ml for one SEC-SAXS experiment (10mL of system purge + 20 mL of column equilibration + 10mL of elution). We recommend you to bring much more (100mL to 500mL) to obtain a better equilibration of the column and to reduce stress in case of trouble.

What we can lend

The biochemistry preparation laboratory provides support to users for the preparation of their experiments. For any question, please ask the laboratory staff.

You are free to bring your own analytical columns for SEC-SAXS. We have also a wide selection of columns that we can lend to our users. All these columns have been calibrated:

BioSec 2.7-130 - Users25

pH: 2 - 8.5

Size: 0.1 - 100 kDa

BioSec 2.7-130

BioResolv 2.5-200 - Users29

pH: 2 - 8

Size: 10 - 450 kDa

BioResolve 2.5-200

BioSEC 2.7-300 - Staff15

pH: 2 - 8.5

Size: 5 - 1250 kDa

BioSec 2.7-300

BioSEC 2.7-300 - Users31

pH: 2 - 8.5

Size: 5 - 1250 kDa

BioSEC 2.7-300

BioSEC 3-300 - Users33

pH: 2 - 8.5

Size: 5 - 1250 kDa

BioSEC 3-300

BioSEC 3-300 - Users32

pH: 2 - 8.5

Size: 5 - 1250 kDa

BioSEC 3-300

BioSEC 5-500 - Users28

pH: 2 - 8.5

Size: 15 - 2000 kDa

BioSEC 5-500

BioSEC 5-1000 - Users34

pH: 2 - 8.5

Size: 50 - 7500 kDa

BioSEC 5-1000



ChemSaxs

What you have to bring

You have to bring your own capillaries  (Ø 1.5 mm preferred) and specifics tools if required for your own setup, or for preparing your samples. We use Agilent standard vials and inserts for the ChemSaxs Liquid AutoSampler. We lend the vials but you have to buy your own inserts (Agilent reference: 5181-1270). In case you forgot, we can provide you with used inserts that you can wash and dry.

Mail-in services

Mail-in services are only proposed for accepted and planified proposals, in the case where users are not able to come onsite.

A discussion between the user and the local contact must be conducted beforehands to agree on the experiment conditions.

Mail-in experiments are conducted by staff member and a few restrictions apply :

  • The sample preparation onsite should be as simple as possible, if any.
  • Experiments will be carried out only during working hours (8h00 to 20h00)
    • An acquisition sequence might be launched outside working hours but without monitoring of the local contact
    • Users are strongly suggested to follow the experiment using the remote access tools offered by SOLEIL
  • For PDF icon BioSAXS mail-in specific instructions (pdf - 151.69 Ko) (151.69 Ko) need to be followed. A Fichier BioSAXS sample sheet (xlsx - 13.79 Ko) (13.79 Ko) must be filled and sent as soon as possible before the experiment date.

During session

Keep in mind that your session can include beamline setup and sample environment installation.

The local contact will take the necessary time to make you completely autonomous on the beamline.

Data Collection sequences

All data collection sequences appear to the user as a simplified GUI with a list of parameter fields to fill (based on Passerelle workflow language). For most of the sample environments and “classical” data collections, a sequence is already written.

If necessary, a new collection strategy can be written just before your experiment, with a new GUI automatically generated. To do so, don’t hesitate to ask your local contact.

It is possible to include an action on an external apparatus (that you bring to SOLEIL) to the data collection workflow under one of the two specific conditions:

A tango device (software) has already been developed for that apparatus. Unlikely

That apparatus includes a connection for external triggering (in/out, BNC preferred), that we can connect to one of our signal generating or reading electronic cards.

Monitoring

Specific GUIs (based on COOX platform) give the possibility to monitor the beamline state (vacuum, valves, motors positions and states…) and the acquisition progress (live images from detector, live values from diodes, direct visualization of the sample,…) as well.

Simple actions like changing sample to detector distance, closing/opening the safety shutter, realigning the monochromator rocking curve, changing the working energy, …, can be done directly from the COOX GUI by clicking on active buttons.

Data Reduction

All data produced on the Swing beamline are stored in HDF5 files. Those files contain detector images, diode values, sample pictures, and a lot of beamline metadata. The files can be processed by the Java based self-installing software Foxtrot. It allows, among other functions: Data visualization (2D images from detectors, Transmission curves, …), data reduction (from 2D images to 1D curves, normalization included, gives intensity scale in cm-1, …), mathematical operations (curves averaging, curves subtraction, curves merging, useful if you recorded data at 2 or 3 sample to detector distances, other basic functions :scaling, linear function, division, summation, …), fits (Guinier, Gaussian and  Lorentzian peaks,  polynomial).

You will be trained by your local contact to use Foxtrot. You will be provided with a copy of the software as a zip file, including your masks and reduction macros.

For SEC-SAXS and BioSaxs AutoSampler, an automatic workflow for data analysis is available. This workflow takes raw images as input files and sends all results curves into the IspyB database. All intermediates files are available to users and can be reloaded into the Foxtrot application.

Living Area

We have a living area with a self service although not free ;-), coffee machine,a sofa a fridge for food and beverages, a micro wave and a table.

This area is sample freee, Please clean it after your session.

After your session

After your session

  •   Sign the Safety Authorization Sheet (SAS).
  •   Please clean the living area and the experimental hutch. If you used support labs, please leave them  clean.
  •   Please don’t forget to fill the end- of- run report in the sunset webpage.
    •    It takes 5 minutes ! That is the best way to specify your remarks.
    •   These reports are read by many people at Soleil, including sometimes the management.

Préparation des échantillons et acquisition

Tutoriels Foxtrot

Présentation des BioLab 1 & 2

Listes des logiciels développés par la ligne SWING.

Programme Foxtrot

Foxtrot Software (Data reduction and treatment) can be downloaded here



Your mask(s) and macro(s) will be given to you by your local contact during the session.





Programme Denfert

Programme Denfert (Détermination ab initio d'enveloppes moléculaires, incluant une couche d'hydratation)
version 2.0 (June 2015)

Denfert : F.A.Q.
A zip archive containing executables for Mac, Linux and Windows together with a test example may be downloaded by clicking here.

... a program for the ab initio “dummy-atom” structural modeling of Biological Macromolecules including the contribution of their inherent hydration layer.

Developed by Alexandros Koutsioubas and Javier Pérez

If you use DENFERT, please cite :

A. Koutsioubas & J. Pérez, Journal of Applied Crystallography (2013) 46, 1884 and A. Koutsioubas, S. Jaksch & J.Pérez, J. (2016). J. Appl. Cryst. 49  (doi:10.1107/S1600576716003393)

Brief Description

DENFERT is implementing a simulated annealing algorithm similar to DAMMIN program by D. Svergun (Biophys. J. 76, 2879-2886) for the restoration of low-resolution structural info of bio-molecules from SAXS and SANS data. The major advantage of DENFERT is that the hydration layer around bio-molecules is taken into account by introducing a second type of beads (hydration beads) in the model.

In the top figure, we see an example of the shape restoration of Lysozyme from SAXS data using DENFERT. A cartoon representation of the crystallographic structure is also presented for comparison. The bottom figure depicts additionally the hydration layer around the reconstructed protein shape.

PDF icon denfert manual (126.1 Ko)

Dadimodo

Dadimodo web server

DADIMODO is a program for refining atomic models of multidomain proteins or complexes against small-angle X-ray scattering data. Domain structures are mainly kept rigid and can be user defined. Stepwise generic conformational changes are applied cyclically in a stochastic optimization algorithm that performs a search in the protein conformation space. The algorithmic structure guarantees that a physically acceptable full atomic model of the structure is present at all stages of the optimization.

To prepare your complete pdb files, you can use ourPlain text icon pre dadimodo script (3.71 Ko)(remove the _.txt extension).

Downloads

PDF icon BioSaxs course (8.07 Mo)
