Researchers from C2N and University of Pennsylvania in collaboration with CASSIOPÉE and TEMPO beamlines found a reliable method to tune the electronic properties of 2D TMDs materials without quality degradation. In particular, they demonstrated that the electronic properties of single layer MoS2 con be tuned from electron (n) to hole (p) doping via controlled exposure to atomic hydrogen at room temperature.
Following similar trend as graphene, the two-dimensional (2D) transition metal dichalcogenides (TMDs) have attracted much interest recently thanks to their versatile electronic and optical properties. However, unlike graphene that does not have a bandgap, they exhibit attractive properties such as indirect-to-direct bandgap crossover with decreasing number of atomic layers and strong photoresponses. In contrast to graphene where only small bandgap (few hundred meV) can be opened by strain and other methods, large bandgap tunability can be obtained with 2D TMDs where we can switch from a semiconducting (with a few eV bandgap) to a metallic form. This large tunability allows broadening the applications of TMDs in nanoelectronic devices. Furthermore, the presence of defects can induce deep gap states responsible for the intrinsic doping of these materials. For instance, in the case of MoS2, sulfur mono-vacancies represent the defects with the lowest formation energy and the most common generally present in MoS2 flakes. In particular, these sulfur vacancies (Sv) cause the presence of unsaturated electrons in the surrounding Mo atoms and act as electrons donors responsible for the n-type doping of MoS2. The introduction of dopants in MoS2 lattice represents a potential route to achieve stable MoS2 with different functionalities. Therefore, it is crucial to develop controllable techniques to make possible the tunability of MoS2 properties without degrading the quality of MoS2 flakes.
In this work, an easy and effective chemical doping method by hydrogen atoms is reported, and the scientists show that hydrogen represents an effective way to passivate sulfur vacancies.
Study of the electronic properties of the hydrogen-doped MoS2 on TEMPO beamline
HR-XPS studies on TEMPO beamline reveal the n type doping of pristine single layer MoS2 which is also confirmed by the measurement of the valence band maximum (VBM). In Figure 1(a) the evolution of the characteristic core level peaks of MoS2 (Mo 3d and S 2p) are shown, from the pristine MoS2 through three different hydrogen doses. After the hydrogen doses the core level peaks of Mo 3d and S 2p show a rigid shift to lower binding energies (BE) (1st dose = -0. 1 eV, 2nd = -0.3 eV and 3rd = -0.5 eV) and the peak related to the sulfur vacancies (Sv) completely disappear indicating a complete saturation of the Sv. The saturation of these vacancies gradually reduced the n-type doping of the MoS2 decreasing the distance of the VBM to the Fermi level (FL) as shown in Figure 1 (b) from 1.25 eV for the pristine MoS2 to 0.95 eV (almost mid-gap, considering a quasi-particle bandgap of 2 eV) for the second hydrogen dose. This is the cause of the rigid energy shift of all core-levels. When the hydrogen dose is further increased the core level peaks still shift toward lower binding energy (-0.5 eV), which correspond to a distance of the VBM to the FL of about 0.75 eV. This means that a p-type doping is now induced in the MoS2 flakes. The formations of Mo-H bonds and the saturation of the Sv replace the donor gap state present in the pristine MoS2 to new acceptor gap state related to the Mo-H bond formation as confirmed by DFT calculations.

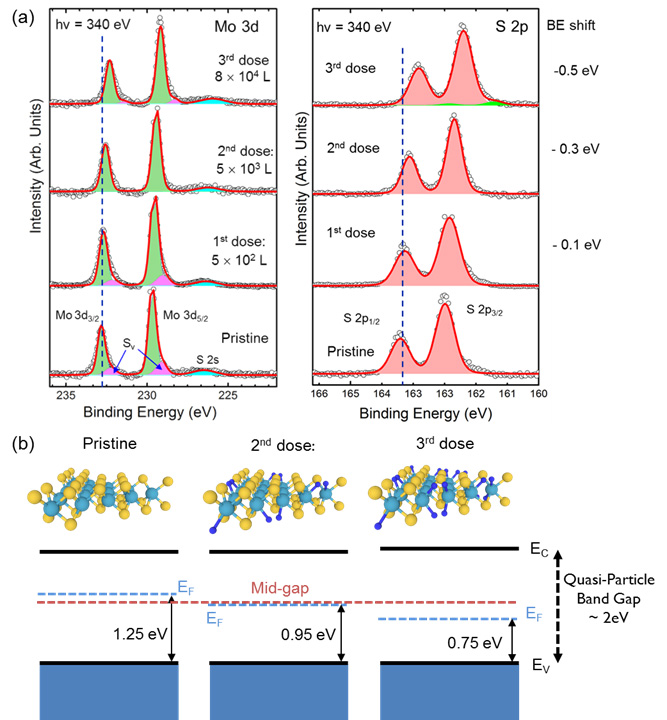

Figure 1: (a) XPS measurement for MoS2 at different doses of atomic hydrogen. Left: Mo 3d core level; right: S 2p core level at hn = 340 eV. After the third dose, the new components present at lower binding energy with respect to the main doublet peaks (~ 0.8 eV) are probably related to the formation of the octahedral 1T phase of MoS2 induced by the high density of hydrogen atoms present in the sample. (b) Band diagram showing the evolution of MoS2 Fermi level: before hydrogenation, upon the 2nd dose, and after the complete hydrogenation (3rd dose).
Study of electronic structure and stability of the hydrogenated MoS2 on CASSIOPEE beamline
The hydrogenated MoS2 kept one month under ambient conditions after the hydrogenation (5.103 L), was studied using ARPES on CASSIOPÉE beamline. In Figure 2, the ARPES momentum energy image, before and after hydrogenation, around the Γ point of the Brillouin zone (BZ) are shown. The expected signal of the monolayer MoS2 valence band is visible. The shape of the upper band of the valence bands is not modified but only shifted toward the FL because of the exposure to the hydrogen atoms. Moreover, we notice the same shift for the other bands around −3 eV and −4 eV (highlighted by the white circles). Hence, we can claim that the hydrogenation induces a uniform shift of all the bands forming the valence band structure of MoS2. The sharp and intense experimental band structure of Figure 2 confirms the hydrogenation process preserves the high structural quality of the MoS2 flakes.

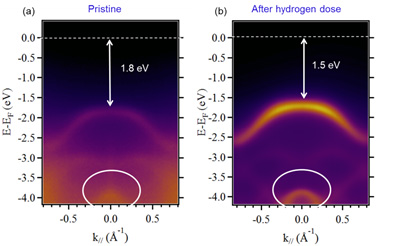

Figure 2: ARPES measurements at room temperature of (a) pristine monolayer MoS2 at hν = 50 eV and (b) hydrogenated monolayer MoS2 at hν = 100 eV around the Γ point.
In summary, a comprehensive study of the interaction of atomic hydrogen with monolayer MoS2 was conducted.
Therefore, the researchers see this hydrogenation process as an efficient method to reduce the defects in MoS2 flakes, control, and switch from n to p the intrinsic as-grown doping. Such control of doping in 2D TMDs is of great importance for potential nanoscale, flexible devices applications based on these materials.
