The AILES Beamline is dedicated to Infrared Absorption Spectroscopy for materials and molecules. The useful spectral range spans from the mid- to far-infrared (IR) or terahertz (THz) domains, but the best performance is within the 8-1000 cm-1 energy range, with maximum resolution of 0.0008 cm-1.
Research on AILES involves molecular spectroscopy and studies of the optical properties of materials. The relevant scientific community encompasses physics, chemistry and biology.
The AILES beamline is designed for absorption spectroscopy, applied to the study of molecular and solid state systems. It covers the electromagnetic spectrum region ranging from the mid- to far- infrared (IR) or THz range (4000 to 5 cm-1).
In addition to the increase in flux and brilliance made possible by synchrotron radiation, the beamline has been designed for a high level of mechanical stability to minimize noise. This was achieved using high-stability optical mounts and chambers compatible with the interferometers' optical throughput.
Radiation emitted in a magnetic dipole is collected, carried and refocused at the entrance of one of the three Michelson-type interferometers (FTIR). Generally, the high-resolution (0.0008cm-1) Branch A is dedicated to rovibrational studies of molecular systems. While the mid-resolution (0.007cm-1) Branch B is dedicated the the optical properties of condensed matter. The mid-resolution (0.007cm-1) Branch C is for the study of electrochemical reactions and catalysis.
The three experimental branches are complemented by various sample environments, enabling studies of matter in gaseous, liquid and/or solid phase with samples subjected to different temperature or pressure parameters. There is also a dedicated laboratory for on-site sample preparation. Research projects on AILES concern different applications in physics, chemistry and biology.
The aim of the beamline is to answer the needs of scientific projects for which bridging the spectral gap between conventional IR and microwave radiation, combining high flux and stability over a broad-band source.
Team
Technical data
1 à 400 meV (8 à 3000 cm-1)
CSR (Coherent Synchrotron Radiation) 40.325-322.6 meV (5.40cm-1)
Interféromètre 1: 0.0001 meV (0.001 cm-1)
Interféromètre 2 (HR) : 10-4 meV (0.0007 cm-1)
Interféromètre 3 : 0.0001 meV (0.001 cm-1)
Magnetic dipole 18x80 mrad² (VxH)
Edge and constant field emission
5.10e13 Phot/s/0.1%bw @ 100 cm-1
1.10e13 Phot/s/0.1%bw @ 10 cm-1
8 miroirs entre l'extraction et les interféromètres.
3 interféromètres :
Haute résolution pour les études de la matière diluée (AILES A)
Résolution intermédiaire pour les études de la matière condensée (AILES B)
Résolution intermédiaire pour les études sur l’électrochimie et catalyse (AILES C)
- White-type Cells dedicated to the study of stable molecules.
- Multipass White Cells for gaseous samples (0.8 - 8m)
- Multipass White Cell for gaseous samples (4m - 150m)
- Multipass White Cell for electric discharges in gaseous samples
- Discharge cell dedicated to the study of transient species
- Cryogenic long-path optical cell
- Supersonic jet facility (Jet-AILES)
- Hollow cathode discharge for positive ions

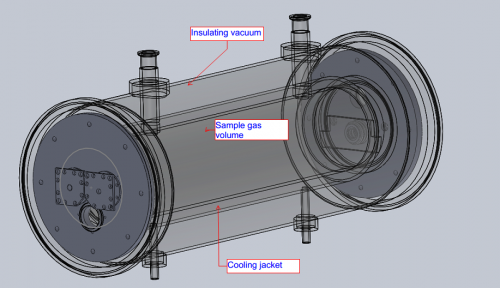

- Long-path glass cell for corrosive gases
Sample Environments:
- Highly stable closed-cycle cryostat (363K/5K)
- High Pressure and Low Temperature (pressure up to 14 GPa; temperature 363K/17K)
- Hydration Cell
- Temperature controlled liquid cell
Optical Set-ups:
- Normal and/or grazing incidence reflectivity measurement setup
- Variable incidence reflectivity measurement setup
- Attenuated total reflexion (ATR) for MIR and FIR
- MIR and FIR polarisers
Sample Environments:
- DRIFTS or IRAS: high temperature (600°C) and high pressure (30bar)
- Thin Path Electrochemical Cell
- ADR Sub-Kelvin Cryostat
Optical Set-ups :
- Normal or/and grazing incidence reflectivity measurement setup
- Variable incidence reflectivity measurement setup
- Attenuated total reflection (ATR) for MIR and FIR
- MIR and FIR polarisers

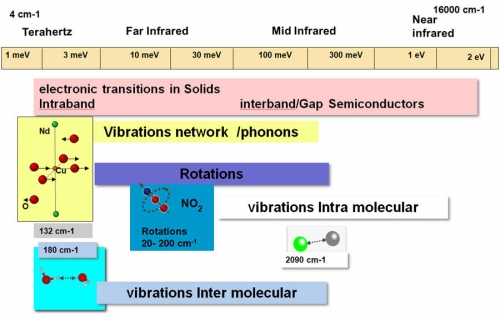

Scientific opportunities
| High resolution gas-phase spectroscopy |
Characteristic spectral signatures of molecules of astrophysical and atmospheric or general interest (mid- and far infrared to millimiter waves). Applications: astrophysical, atmospherical, general physical chemistry |
|---|---|
| Dynamics of molecules followed by operendo methods |
Studies of the reactivity of small molecules under operando conditions. Applications: heterogeneous catalysis, electrocatalysis, photocatalysis, battery Study of molecules in nanometric confinement structures: nanomaterial supports, drug excipients. Applications: pharmacology, nanotechnology |
| Physical chemistry at interfaces |
Studies of mixed-valence compounds, such as manganites, thin layers materials for solid state physics and microelectronics. Applications: synthesis of new materials |
| Optical properties of solids |
Studies of non conventional crystals such as high temperature supraconductors and molecular magnets. Applications: nanotechnology |
Spectrometers
The AILES beamline uses three Bruker 125 Interferometers (branch A, B or C) as stations for spectroscopic analysis. The Synchrotron Radiation (SR) can be steered by movable mirrors toward any interferometer.
Branch B and C interferometers have a medium resolution (max unapodized resolution = 0.008 cm-1) and are the choice for condensed matter, electrochemical and catalysis studies. The branch A interferometer has a high resolution and is the choice for isolated molecules and gas phase studies.
A complete range of optimized beam splitters and detectors are available to cover the whole near- to far- infrared range. As the strong point of the AILES beamline is experimentation in the far IR, a special effort has been in the implementation of fast bolometers (~1 kHz bandpass) enabling an increase in signal to noise ratio (S/N) with respect to standard detectors.

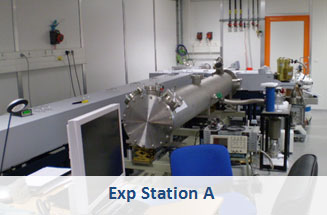

High-Resolution Branch A
The optimum range for the beam splitters are:
0 to 50 cm-1 (125 µm Mylar)
20 to 100 cm-1 (50 µm Mylar)
30 to 650 cm-1 (Composite Si + 6 µm Mylar)
400 to 4500 cm-1 (Ge on KBr)
1200 to 9000 cm-1 (Si on CaF2)
8500 to 25000 cm-1 (TiO2 on Quartz)
The available detectors:
1.6 K Bolometers for 0-30 cm-1 (slow response) or 0-100 cm-1 (fast response).
4.2 K Bolometers for 30-650 cm-1.
77 K Photoconducting and Photovoltaic HgCdTe for 600-4500 cm-1.
77K Photovoltaic InSb for 1900-7500 cm-1.
Room temperature Photovoltaic InGaAs and Si for 6500 to 20000 cm-1.
Vacuum systems:
The experimental stations must be operated under vacuum to minimize atmospherical absorption and acoustic perturbations, the interferometers and the beam line have been equipped with magnetic bearing turbopumps to provide almost vibration-free operation down to 10-5 mbar. A separate gas vacuum line and a range of thermostated precision capacitance manometers are available for assisting in preparing the samples.

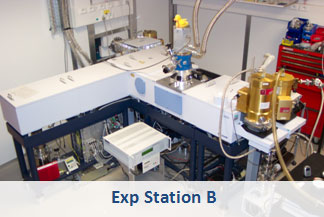

Mid-Resolution Branch B
The optimum range for the beam splitters are:
0 to 50 cm-1 (125 µm Mylar)
20 to 100 cm-1 (50 µm Mylar)
30 to 650 cm-1 (Composite Si + 6 µm Mylar)
400 to 4500 cm-1 (Ge on KBr)
1200 to 9000 cm-1 (Si on CaF2)
8500 to 25000 cm-1 (TiO2 on Quartz)
The available detectors:
1.6 K Bolometers for 0-30 cm-1 (slow response) or 0-100 cm-1 (fast response).
4.2 K Bolometers for 30-650 cm-1.
77 K Photoconducting and Photovoltaic HgCdTe for 600-4500 cm-1.
77K Photovoltaic InSb for 1900-7500 cm-1.
Room temperature Photovoltaic InGaAs and Si for 6500 to 20000 cm-1.
Vacuum systems:
The experimental stations must be operated under vacuum to minimize atmospherical absorption and acoustic perturbations, the interferometers and the beam line have been equipped with magnetic bearing turbopumps to provide almost vibration-free operation down to 10-5 mbar.
Mid-Resolution Branch C
THE OPTIMUM RANGE FOR THE BEAM SPLITTERS ARE:
0 to 50 cm-1 (125 µm Mylar)
20 to 100 cm-1 (50 µm Mylar)
30 to 650 cm-1 (Composite Si + 6 µm Mylar)
400 to 4500 cm-1 (Ge on KBr)
1200 to 9000 cm-1 (Si on CaF2)
8500 to 25000 cm-1 (TiO2 on Quartz)
THE AVAILABLE DETECTORS:
1.6 K Bolometers for 0-30 cm-1 (slow response) or 0-100 cm-1 (fast response).
4.2 K Bolometers for 30-650 cm-1.
77 K Photoconducting and Photovoltaic HgCdTe for 600-4500 cm-1.
77K Photovoltaic InSb for 1900-7500 cm-1.
Room temperature Photovoltaic InGaAs and Si for 6500 to 20000 cm-1.
VACUUM SYSTEMS:
The experimental stations must be operated under vacuum to minimize atmospherical absorption and acoustic perturbations, the interferometers and the beam line have been equipped with magnetic bearing turbopumps to provide almost vibration-free operation down to 10-5 mbar.
Performances
What is special about SR for IR spectroscopy?
Synchrotron radiation flux extracted on some infrared beamlines
Synchrotron radiation constitutes a high flux and brightness broad band source used in various facilities around the world.
Beam intensity profile (near 1000 cm-1) at the interferometer entrance focal plane on AILES.
For example, around 1000 cm-1, the beam, although slightly asymmetrical in profile due to the asymmetry in the emission and shape in the front extraction mirror, can focussed to have 95 % of the total flux ( 5 x 1013 photons/sec/cm-1) contained within 0.75 mm from the beam axis.
Φmeasured = 4.5 ± 1.5 1013 photons/s/0.1% B.P. @ IRS = 500
Such properties are crucial for studies limiting the source or sample surface area such as condensed studies on small sample cells or crystals and high resolution gas phase work.
For high resolution studies, the input SR IR beam can be used in many instances without entrance iris (Note that the effective beam size at the spectrometer entrance varies with wavelength, a good rule of thumb being d(mm) = 25 (ν (in cm-1)-½ ).
The following figure presents the S/N enhancement achieved for high resolution measurement as measured at AILES :
Thus a 6-fold enhancement means that an equivalent S/N ratio would require some 36 days of measurement around 200 cm-1 to reach a S/N ratio of about 80 without SR…
The dependence in beam size following approximatively the requirement in source size for work at the highest resolution, optimum conditions can be met in one measurement without repeating measurements with different aperture stops.
Comparison of two successive HR measurements with aperture stop Ø = 1.5 mm (red) and without aperture stop (black). Detail of one the low J R branch cluster of the ν4 band of OsO4.
Sample environments and optical set-ups available on the mid-resolution spectrometers of Branch B and Branch C.
Closed-cycle highly stable cryostat
A cryogenic system allowing infrared transmission measurements for samples at temperature ranging from 400K to 4K has been developed for condensed matter measurements (Branch B). This system includes a He pulse tube closed-cycle cryogenerator provided by Cryomech (PT 405) which cools samples to 4K in 1h30.
The chamber and sample holders were designed and developed at SOLEIL and is connected to the IFS125 BRUKER spectrometer. Optics within the chamber reduce the spot size at the sample by a factor 2, allowing measurement of small samples (<1mm), and can also be aligned while under vacuum. The vacuum of the cryostat chamber can reach 10-6mbar.
Specific sample holders adapted for pellets, solid or liquid samples have been developed and also allow for measurements in transmission or reflectivity mode. Additionally, an in-situ thermal gold evaporator is also available for measurement of the reference in reflectivity measurements.
Main features :
- High stability in temperature
- Temperature control from -268°C to 80°C (5°K - 353°K)
- Computer controled temperature ramp

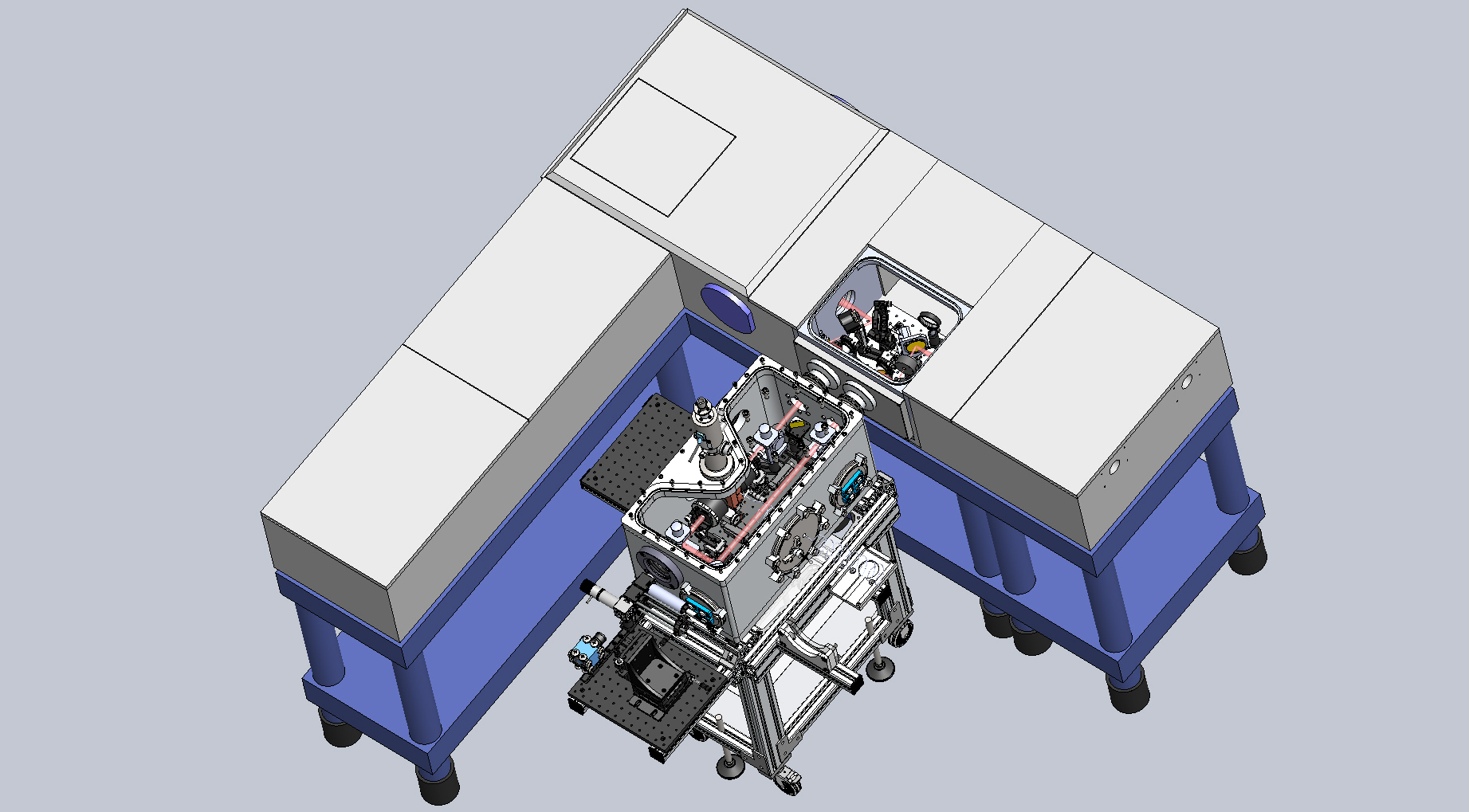

Schematic view of the low vibration cryostat inserted in the sample chamber (represented as transparent ). A turbo molecular pump placed under the chamber allows for a vacuum compatible with the cold head. Two focusing mirrors can be adjusted under vacuum for optimising the alignment after the pumping. Left: details of the chamber: the sample mounting is rigidly fixed to the top flange by ceramic poles while cold is transmitted from the cryostat to the sample by copper mesh.

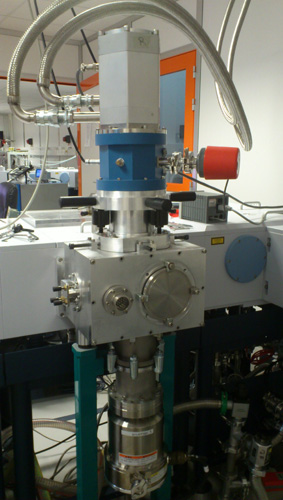

Photo of the closed-cycle cryostat.
Hydration Cell
We designed a copper cell allowing: (i) temperature control between 380 K and 40 K; (ii) dosage of the desired amount of adsorbed gas; (iii) pumping down to 10-6 mbar for reference measurements free from molecular adsorption. The cell was designed to study the modifications to the infrared spectra following molecular adsorption. The use of a unique cell, in a wide spectral domain, provides complementary information and insures the reproducibility of the adsorption and gas dosage.
The cell is made in copper in order to allow for good thermal exchange and has a volume of ~1 cm3 to limit gas absorption at ambient pressure. It is UHV-compatible (leak rate > 1·10-9 mbar·l/s). The cell is connected to a closed-cycle cryostat by a copper braid for cooling and temperature resolved experiments (from 40 K to 380 K). A thermocouple and a resistive heater allow controlling the sample temperature during measurements with a precision of ± 0.1 K. The cell is equipped with two diamond windows (10 mm in diameter, 0.5 mm in thickness at center, 0.5° wedge) allowing to measure the transmission of material from the THz to the mid infrared region with reduced spectral channelling effects. The sample is fixed on a sample holder at precise normal incidence relative to the incident beam. An entry for the gas input/output or the vacuum pump is also present in the body of cell. Gas dosage can be done in static conditions.
During hydration measurements, the system is studied at equilibrium for a given value of relative humidity (defined as the ratio of partial water vapour pressure p and water vapour pressure p0 (31.7 mbar at 25°C) at a given temperature, RH=(p/p0)*100). A tube containing outgassed deionized liquid water (18.2 MΩ·cm-1 at 25°C) provides the vapour source. The vapour pressure is monitored by a thermostated gauge (0-100 mbar at ±0.02 mbar) and, once at equilibrium, the measurements are performed.

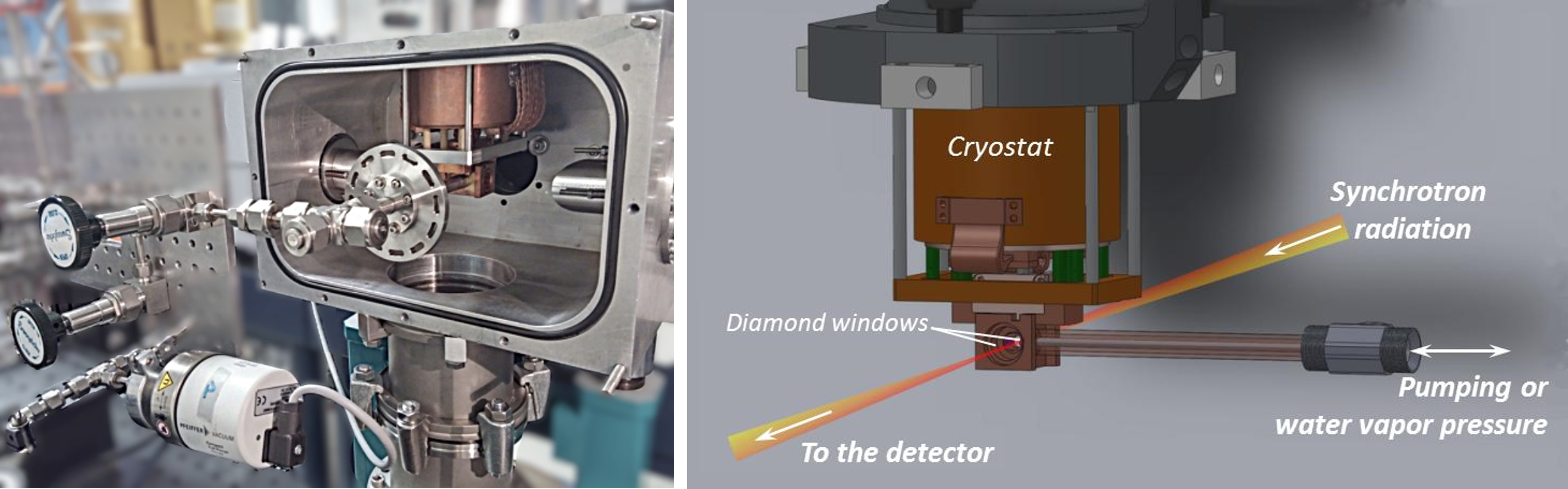

Schematic view of the hydration cell designed at AILES beamline. The cell is connected to the cold finger of a closed cycle cryostat and focusing optics allows the modulated beam to pass through the sample in contact with a controlled amount of gas.
High Pressure and Low Temperature
Despite the importance of the information that it provides for condensed matter studies, far Infrared spectroscopy nowadays much less exploited than other methods for very high-pressure studies. The high brilliance of synchrotron radiation allow the interfacing of a Diamond Anvil Cell (DAC) with an infrared interferometer. The studies of materials under extreme pressure is possible.

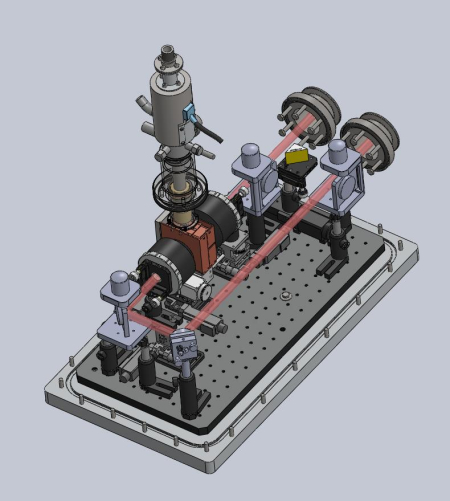

A device dedicated to high pressure and low temperature measurements have been developed recently.
This set-up is placed into a separated compartment and use two focusing Cassegrain optics. Infrared measurements can be made in transmission and reflectivity, using a diamond anvil cell.
A small quantity of the sample to study is mixed to a binder transparent in infrared (polyethylene in the FIR, KBr or NaBr in the MID) and then loaded in a 250 µm hole drilled in a pre-indented gasket. A ruby inserted in this space is used to calibrate pressure. The pressure is controlled in the range up to 14GPa and the set-up allow measurements by steps of 1 to 2 GPa after a stabilization of for 5 to 10 min at each pressure point. The sample can be cooled down to 50K thanks to a cryostat.
Thin path electrochemical cell
To analyze metal-ligand vibrations and provide key answers for the understanding of metal site properties in metalloproteins and in metallocomplex, the Far-infrared (Far-IR) difference spectroscopy technique is the ideal tool.
In order to extract the part of the signal corresponding to the metal-ligand vibrations imbedded in the massive water absorption, it is necessary to record difference spectra obtained at specific points during an oxidoreductive cycle applied on liquid samples.
This transmission cell is an optimization of an existing set-up [1] equipped with 2 CVD diamond windows (transparent in the 2000 to 50 cm-1 spectral range) together with a 4µm thick gold grid as a working electrode [2, 3, 4].
This set-up has been adapted for use with the synchrotron beamline AILES spectrometers. In particular, it can work under vacuum a necessary condition to increase the stability of the optics, the sensitivity of the measurements (less than 10-4 unity of absorbance), and hence the spectral resolution.
[1]Moss et al., Eur J Biochem (1990) 187, 565-572.
[2]Berthomieu C et al., Biopolymers (2006) 82, 363-367.
[3]Marboutin L. et al., J Phys Chem B, (2009) 113, 4492-4499.
[4]Vita, N., Brubach, J. B., Hienerwadel, R., Bremond, N., Berthomieu, D., Roy, P., & Berthomieu, C.
Electrochemically-induced far-Infrared difference spectroscopy on metalloproteins using advanced synchrotron technology.
Analytical Chemistry, 2013, 85(5): 2891–2898

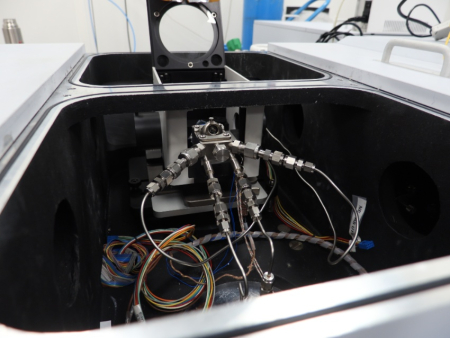

DRIFTS
The DRIFTS optics incorporates two 6:1, 900 off-axis ellipsoids that form a highly efficient diffuse reflection illumination and collection system it also deflects the specular reflectance away from the collecting ellipsoid, minimizing spectral distortions.
High Temp. Reaction Chamber applications allow diffuse reflection (DRIFTS) spectroscopic measurements under controlled pressures (0-30bars) and a wide range of temperatures (77K to 1000K).
This makes diffuse reflectance a valuable tool for studying “in-situ” heterogeneous catalysis, gas-solid interactions, photochemical reactions, and oxidation mechanisms. The cell is equipped with specific windows allowing measurement from the THz to the Mid-infrared frequency range.

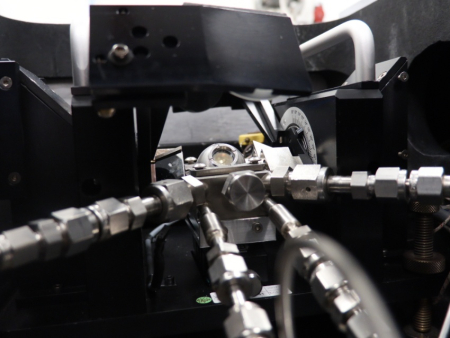

IRAS

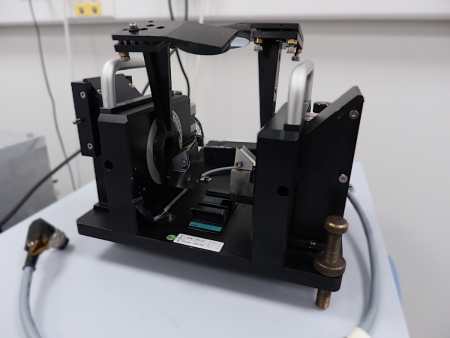

The Infrared reflection absorption spectroscopy (IRAS) optics incorporates a series of mirrors allowing infrared measurement at à grazing measurement (60°) and the coupling of the high temperature/pressure reaction chamber.
This allows infrared measurements, in the full frequency range of the AILES beamline, of small quantities (1-2mg) of powder or solid sample, under various temperature and pressure conditions of the gas mixture.

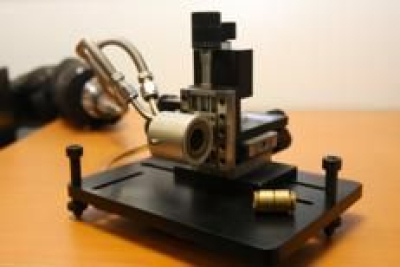

Temperature controlled Liquid cell
The transmission studies of liquids as a function of the temperature in the range -75°C to 100°C is offered on the AILES beamline. The set-up is composed of a motorized tree axis motion, which allows the adjustment of the cell containing the sample without breaking the vacuum.
This tree axis supports a sample holder and the circulating liquid system for cooling or heating the sample. Various windows (Diamond, Polyethylene, TPX, CaF2, ZnSe) allow spectroscopic studies in all the infrared range from 5cm-1 to 20000cm-1.
The thickness of the sample is defined by Mylar spacers ranging from 1 μm to 100 μm. In order to measure the temperature of the sample a Pt100 sensor is connected to the liquid cell containing the sample.
ATR Set-up under vacuum
Attenuated Total Reflection (ATR) is a sampling technique which enables solid, liquid or thin films samples to be examined directly in the infrared range. The ATR uses the evanescent wave, a property of total internal reflection to probe the sample. A beam of infrared light is passed through the ATR crystal in such a way that it reflects off the internal surface in contact with the sample.
This reflection gives rise to the evanescent wave which extends into the sample. The penetration depth into the sample is typically close to the wavelength of light, but is also affected by the angle of incidence and the indices of refraction for the ATR crystal and the medium being probed. This results in the technique to be adapted to the spectral range: a long path in the far infrared where the sample is usually less absorbing and a shorter path in the mid infrared where the sample usually absorbs more.
As the AILES beamline is working under vacuum, we have developed a mechanical device combining the ATR optics of a commercial set-up (Smart-Orbit, ThermoNicolet) and the sample compartment of the spectrometer under vacuum. With this configuration the entire optical path is under vacuum (preventing atmospheric water vapour absorption) except for the attenuated wave redirected toward the sample pressed at the diamond crystal interface. In addition, as the set-up optics only exploits reflective optics (no refocusing lenses are used) this configuration is adapted to the entire visible, infrared and THz ranges.
Furthermore, although the interferometer is evacuated and changing samples does not require breaking the vacuum system. Other advantages consist in the ability to obtain a reference by measuring a simple "total reflection" (without pressed sample)
Cut schema (center) and 3D view (right) of the ATR ensemble. A highly focusing optics is placed in the sample compartment of the medium resolution interferometer (under vacuum) while the press and the sample are in the atmosphere. The modulated beam coming from the interferometer is refocused at the position of the diamond prism. After the attenuated total reflection took place at the interface between the diamond and the pressed
sample, the beam is redirected to the detector.
Cut schema (center) and 3D view (right) of the ATR ensemble. A highly focusing optics is placed in the sample compartment of the medium resolution interferometer (under vacuum) while the press and the sample are in the atmosphere. The modulated beam coming from the interferometer is refocused at the position of the diamond prism. After the attenuated total reflection took place at the interface between the diamond and the pressed
sample, the beam is redirected to the detector.
Photo of the ATR used at the AILES beamline
Photo of the ATR used at the AILES beamline
Optical Set-Ups
The study of solids or liquids is possible either in transmission or in reflection using the commercial set-up described here.
The A513/Q Bruker reflection accessory allows the measurement of the solids (or liquids) reflectivity for variable incidence angles between 13 and 85 degrees. The sample is placed in the horizontal plan of the set. The development of a motorized translation stage allows the simultaneous positioning and then the successive measurement of reflectance for 3 different samples. This setup is particularly well adapted for the study of non-transparent materials (Infrared Refection Absorption Spectroscopy of monolayers or sub-monolayers, Langmuir-Blodgett films, corrosion analysis, semiconductors,…). The control of the angle of incidence is made directly through the acquisition software, without breaking the vacuum in the spectrometer. The coupling with a motorized polarizer (also computer controlled) is possible.
The unit A510/Q-T is an accessory designed for both transmission and reflection measurements mainly in the MIR region. The great advantage of this unit is that the sample can be measured in transmittance and reflectance at exactly the same spot without the need of interrupting the spectrometer purge or venting the sprectometer (when working under vacuum condition). Typical applications are the spectroscopic analysis of solids (e.g. crystals, semiconductors), optical filters and window materials, accurate absorbance determination as well as low temperature transmittance and reflectance studies.

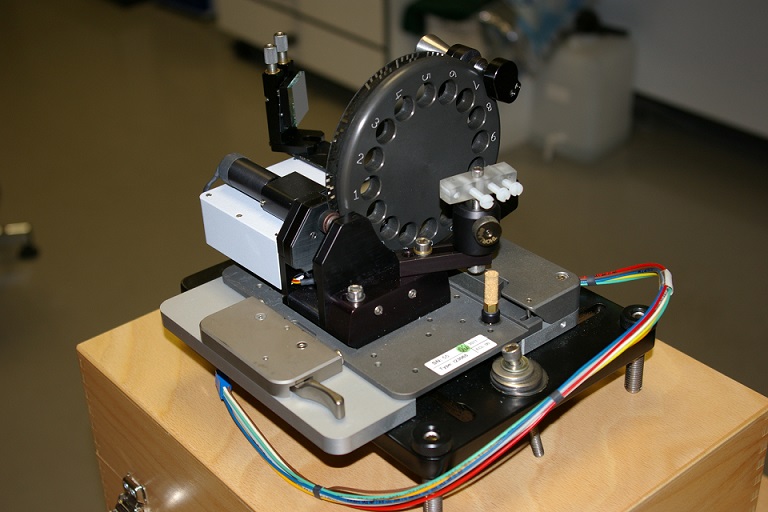

A500 automated wheel 16 samples
The motorized polarizer holder A121 allows a computer-controlled operation of the polarizer, i.e. measurement at different polarization angles without the necessity of opening the spectrometer sample compartment are possible. The polarizer holder can be rotated by 360° with an angle resolution of 0.25°.
Spectroscopic measurements with polarized light are used, for example, for the analysis of:
- Molecular orientation of crystals or films
- Thin film layers
- semiconductor materials
- Langmuir-Blodgett films
White-type cells dedicated to the study of stable molecules
The beamline is equipped with several cells for the study of stable molecules in the gas phase (<1 bar).
A multi-reflections very-long path White-type cell dedicated to the study of stable molecules (figure 1), developed on the AILES beamline thanks to ISMO laboratory financial funding, is available to external users since 2008. It consists of a stainless steel cylindrical vacuum chamber of 2853 mm length and 600 mm diameter equipped with three mirrors in a White-type arrangement. The hard gold coated optics are spherical concave mirrors with 2526 mm radius of curvature and diameters of about 200 mm. An absorption path length of about 10 up to 180 m can be reached in this cell. Using this set-up one can perform gas-phase absorption spectroscopy in the FIR region for several kinds of samples. Thanks to the relatively long absorption pathlength, pure rotation as well as rovibration transitions of low frequency modes were obtained for samples with low vapor pressure at room temperature.
Figure 1. Schematic of the multi-reflections very-long path White cell
Other multi-pass cells with White-type optics are available:
- a commercial Bruker A 136/2-R variable long path gass cell (figure 2). Equipped with adjustable gold plated mirrors, this cell allows for optical paths from 0.8m to 16m.
- Gemini cell (figure 3). This glass cell from is equipped with an enhanced White-type optical arrangement featuring additional back reflectors, allowing to extend the beam path up to 96m within this compact 1m-long cell.
Depending on the requirements of the experiment, these cells can be heated externally.
For more absorbing samples, other single-pass cells with path lengths of several centimeters are available.
Figure 2 : Bruker A 136/2-R variable long path gas cell
Figure 3. Gemini long-path cell
Discharge cell dedicated to the study of transient species
A discharge set-up based on a White-type cell has recently been developed on the AILES beamline by the ISMO team thanks to grants from National program PCMI obtained in 2009 and from the ISMO laboratory. Spectra of transient species such as small carbon chains, radicals or high temperature molecules synthesized in the positive column of the DC discharge plasma are obtained using absorption spectroscopy.
This discharge cell of relatively large diameter (13 cm) and length (110 cm) has been specially designed for an optimal coupling with the Bruker FT interferometer using either internal sources or synchrotron emission continua. A set of gold coated spherical concave mirrors with 82.5 mm diameters is placed in a White-type arrangement and allows an absorption path length of 24 meters. These three spherical concave mirrors have a 1000 mm radius of curvature. The cell is connected to the spectrometer by means of two DN25 to enter and exit the modulated infrared light.
The stainless steel water cooled electrodes, supplied by a continuous high voltage (1 kV / 2 A), create a high current discharge. Several inlets in the Pyrex discharge tube are used to continuously inject mixture of helium (He) and precursors species. Relatively fast gas flow (required to record absorption spectra of transient species) is obtained thanks to an EH500 Edwards booster pump associated to an ACP28 primary dry pump. Thanks to the relatively long absorption path length of the cell, the synchrotron radiation source and the direct probe inside the positive column of the discharge where radicals are produced, this absorption technique appears quite sensitive and allows the use of the highest resolution of the interferometer.
This set-up is now open to external user groups for the study of radicals or reactive molecules.
Cryogenic long path optical cell
The need for a cryogenic long path cell for high resolution rovibrational spectroscopy has been expressed by the user community of the AILES beamline. Indeed, the study at low temperatures can be necessary to model the absorption by molecules of atmospheric or astronomic interest. In many instances the ro-vibrational spectrum measured at cold temperature is necessary for an accurate analysis with molecules with many low energy vibrational modes to reduce hot band spectral congestion.
This cell (figure 1, see also [1]) has been developed on the AILES beamline in association with the LISA laboratory (Laboratoire Interuniversitaire des Systèmes Atmosphériques, Université Paris-Est Créteil, Université Paris-Cité, CNRS). It allows for optical paths of the order of hundred meters in a controlled enclosure between 300 and 100K ±1K, with vacuum systems capable of handling the appropriate gas mixtures without generating extraneous vibration, harmful to the quality of the measurements.
The cell consists of an inner core compartment, containing the gas and the optical system, surrounded by a double wall convection cooling jacket (of which the outer one is a liquid nitrogen reservoir and the inner one contains an inert gas for convective cooling of the core), and an outer vacuum compartment (figure 2(a)). This design avoids the use of conventional cooling devices requiring a continuous flow of cryogenic fluid, and whose regulation generates undesired low frequency vibration.
Featuring a Chernin-type optical set-up (figure 2(b), see also [2]), less sensitive to vibrations and deformations than conventional White-type optics, this cell can be operated with beam paths lengths from 4 to 144 meters in a wide spectral range (2 to 300 µm, i.e. 5000 to 33 cm-1).
Because of the lower accuracy of commercial cryogenic pressure gauges, the cell is equipped with custom precision gauges [3] compatible with the temperatures of operation. These gauges developed at SOLEIL are based on capacitive sensors using flexible electrodes and yield a 0.001 mbar accuracy over a pressure range of 100 to 0.1 mbar.

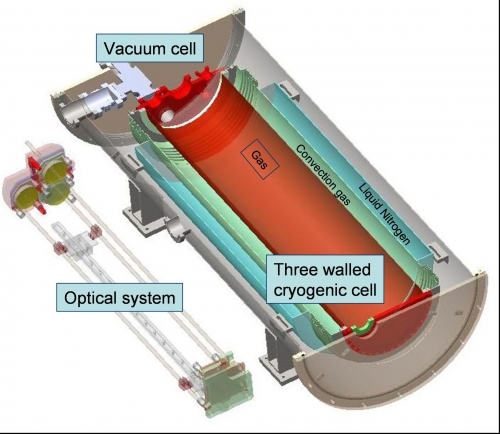

Figure 1. Side view of the cryogenic cell
Figure 2. Schematic of (a) the Chernin-type long path optical set-up embedded in the cell and (b) cut view of the vacuum, coolants, and sample compartments.
[1] Kwabia Tchana, F., Willaert, F., Landsheere, X., Flaud, J.-M., Lago, L., Chapuis, M., Herbeaux, C., Roy, P., and Manceron, L., “A New, Low Temperature Long-Pass Cell for Mid-Infrared to Terahertz Spectroscopy and Synchrotron Radiation Use.” Review of Scientific Instruments 84, no. 9 (September 1, 2013): 093101. https://doi.org/10.1063/1.4819066.
[2] Chernin, S. M., and Barskaya, E. G., “Optical Multipass Matrix Systems.” Applied Optics 30, no. 1 (January 1, 1991): 51. https://doi.org/10.1364/AO.30.000051.
[3] Lago, L., Herbeaux, C., Bol, M., Roy, P., and Manceron, L., “A Rugged, High Precision Capacitance Diaphragm Low Pressure Gauge for Cryogenic Use.” Review of Scientific Instruments 85, no. 1 (January 14, 2014): 015108. https://doi.org/10.1063/1.4861358.
Supersonic jet facility (Jet-AILES)
R. Georges, A. Moudens, M. Goubet, T.R. Huet M. Cirtog, P. Asselin, P. Soulard
O. Pirali, P.Roy.
IPR, LADIR and PhLAM laboratories
Absorption FTIR spectroscopy in supersonic jets combines several advantages: (i) very low rovibrational temperatures attainable in supersonic expansions are essential to reproduce not only the diluted and cold environments of planetary atmosphers but also to simplify the spectral congestion within rovibrational bands of polyatomic molecules, as well as to stabilize weakly bound molecular complexes, (ii) the broad spectral coverage of the interferometer enables to realize precise structural studies for a large variety of molecular systems, (iii) finally the detection sensitivity of this spectroscopic tool can be notably improved due to the availability of large molar flows and to the implementation of efficient optical multipass devices , particularly when using the low divergent synchrotron radiation.
The continuous supersonic expansion takes place in a 400 mm diameter chamber directly evacuated by a combination of two Roots blowers (Edwards EH 500 and 2600) backed by a dry primary pump (Edwards GV 80 Drystar) leading to an effective pumping capacity of 2000 m3/h. The mechanical vibrations are efficiently damped by decoupling the pumping unit from the chamber thanks to two dedicated bellows mounted on the pumping line. In addition, the roots pumps are mounted on a concrete block and the chamber is rigidly fixed to the ground.
A large flow supersonic jet facility (Jet-AILES) was developed around the AILES beamline by a consortium involving three expert groups from the laboratories: IPR, LADIR and PhLAM. Jet-AILES provides a larger column-density of complexes whose sizes can be controlled by tuning the backing pressure and takes advantage of the high radiance of the SR in the FIR range. first slit nozzle of 60 mm in length is used for reaching moderate stagnation pressures (ca. 700 mb), in a single absorption pass configuration (SPC).
To know more : Cirtog, M., et al Journal of Physical Chemistry A, 115(12): 2523–2532 (2011).
Hollow cathode discharge for positive ions
IR and far-IR absorption spectroscopy of positive ions in hollow cathode discharge
The ISMO team received grants from the National program PCMI for the period 2009-2013 to develop an experimental set-up permitting to record absorption spectra of positive ions of astrophysical relevance using FT spectrometers. This hollow cathode cooled to liquid nitrogen optimizes the ion production in the negative glow of the discharge.
Long path glass cell for corrosive gases
For many highly reactive or corrosive gases (strong oxidizers such as ozone, chlorine, nitrogen oxides, metal oxides, oxo-halogeno compounds, or strong acids) quantitative spectroscopic studies are needed for retrieval of atmospheric concentrations following remote sensing measurements. These compounds are however catalytically decomposed on metal surfaces and require special handling equipment.
Thanks to cooperation and funding by CEA (Commissariat à l’Energie Atomique) and the LISA laboratory (Laboratoire Interuniversitaire des Systèmes Atmosphériques, Université Paris-Est Créteil, Université Paris-Cité, CNRS), the AILES beamline has a developed a cell (figure 1) which can handle such gases. Made of glass and Teflon-coated materials and equipped with a White-type optical set-up made of protected gold-plated mirrors, this cell is designed to provide a variable path length between 2.5 and 25m. With the cooling jacket surrounding the core gas compartment (figure 2), the sample temperature can be adjusted between 350 and 200K, to help stabilize reactive species or evidence thermodynamical equilibria. A special, homemade capacitive pressure gauge is developed for precise pressure measurements of reactive or highly corrosive gases.
Figure 1. Side view of the long path glass cell for corrosive gases.
Figure 2. Schematic view of the main glass body.
Mid Resolution
Platine chauffante Linkam 0-1200°C
The study of infrared response of condensed matter under high temperature provides information about the transition in the condensed matter. The goal of this setup is to combine a Linkam Stage (TS1200V), normally used for microscopy, and the Bruker interferometer IFS125. We are currently developing a support, which could be placed in the high pressure box, between the two Cassegrains optics. The Linkam Stage would be placed under vacuum. The two Cassegrains optics allow us to have a very small beam that allows us to measure very small part of a sample. The support will be mounted on a YZ motorized micrometer positioning stage, that allow us to move across the sample, and focalize in one or another part of the sample.
The Linkam Stage can heat up to 1200°C; have a sample of maximum 10 mm diameter
In order to reach such high temperature a water cooling circuit is implemented for cooling the stage.
Photo of the set-up heating Stage of Ailes Beamline at Soleil
High Pressure High Temperature (HPHT)
Oncoming
High Resolution
Heated cell for low vapor pressure cell
Room temperature measurements of isolated molecules are limited to relatively high vapor pressure species. Yet, many large carbon bearing molecules of high astrophysical relevance shows very low vapor pressure values. We nevertheless used a White cell (maximum absorption path length of 200m) to study the anharmonic effects on the naphthalene spectrum recorded at room temperature (Pirali et al. PCCP, 2009).
In order to extend this study to larger molecular systems (which show lower vapour pressure at room temperature), we are now building a heated cell containing multipass optics ( maximum pathlenght 48 m) in order to record the high resolution spectra at controlled temperature (less than 400K). The temperature will be adjusted to increase the vapour pressure of PAHs samples in order to obtain the high resolution spectra of the IR/FIR modes which permit to extract anharmonic parameters from hot band sequences, combinaison bands and overtones. A cold element will permit to condensate the sample on its surface. Once the capabilities of the forthcoming cell stated and the first results on PAHs obtained, the set-up will be proposed to external groups to record absorption spectra of samples showing low vapour pressure.
This set-up is developped by the ISMO team through the GASPARIM ANR funding
Main transitions observed in infrared on AILES beamline
Research areas
| High resolution gas phase spectroscopy |
Characteristic spectral signatures of molecules of astrophysical and atmospheric or general interest (mid- and far infrared to millimiter waves). Astrophysical, atmospherical applications, general physical chemistry. |
|---|---|
| Dynamics of molecules followed by operendo methods |
Studies of the reactivity of small molecules under operando conditions. Applications: Heterogeneous catalysis, Electrocatalysis, Photocatalysis, Battery Study of molecules in nanometric confinement structures: nanomaterial supports, drug excipients. Applications: pharmacology, nanotechnology |
| Physical chemistry at interfaces |
Studies of mixed-valence compounds, such as manganites, thin layers materials for solid state physics and microelectronics. Applications in sinthesis of new materials. |
| Optical properties of solids |
Studies of non conventional crystals such as high temperature supraconductors and molecular magnets. Applications in nanotechnology. |
Partners and collaborations
National action research :
- ULTRASYNC (2019-2023)
- QUASARS (2019-2023)
- HEROES (2018-2022)
- SANTA (2018-2022)
- HEXSIGE (2017-2021)
- PS2FIR (2013-2017)
- DYMAGE (2013-2016)
- Dynaco (2010-2014)
- ProMetTHz (2008-2012)
- MINOS ( 2007-2011)
- FTID (2006-2010)
Collaborations :
LPCA : Laboratoire de Physico-Chimie de l'Atmosphère, Université du Littoral (Dunkerque)
SPEC CEA : Quantum coherence and many-body correlations (Saclay)
Institut NEEL (Grenoble)
LPS : Laboratoire de Physique des Solides (Orsay)
LADIR : Laboratoire de dynamique, interaction et réactivité
ICMMO : Institut de Chimie Moléculaire et des Matériaux de Orsay
LISA : Laboratoire Inter-Universitaire des Systèmes Atmosphériques -Jussieu Créteil
Université de Tours (Région Centre)
ISMO : Institut des Sciences Moléculaires d'Orsay
PhLAM (Lille) : Laboratoire de Physique des Lasers, Atomes et Molécules
Université de Rennes
Acces to the SOLEIL beamlines is open to scientists of the entire world. Every year, the AILES beamline at SOLEIL welcomes guest scientists or researchers from both academic and industrial communities, but, to access the facilities and obtain beamtime, potential users must first submit a beamtime application, via the SunSet application on the SOLEIL website.
|
Beam time Applications Two important deadlines (standard & BAG project) : |
Prepare your Beamtime application The general User's guide
Downloads
Beamline poster (1.28 MB - pdf) (1.28 MB) Beamline description (99.9 KB - pdf) (99.9 KB)
